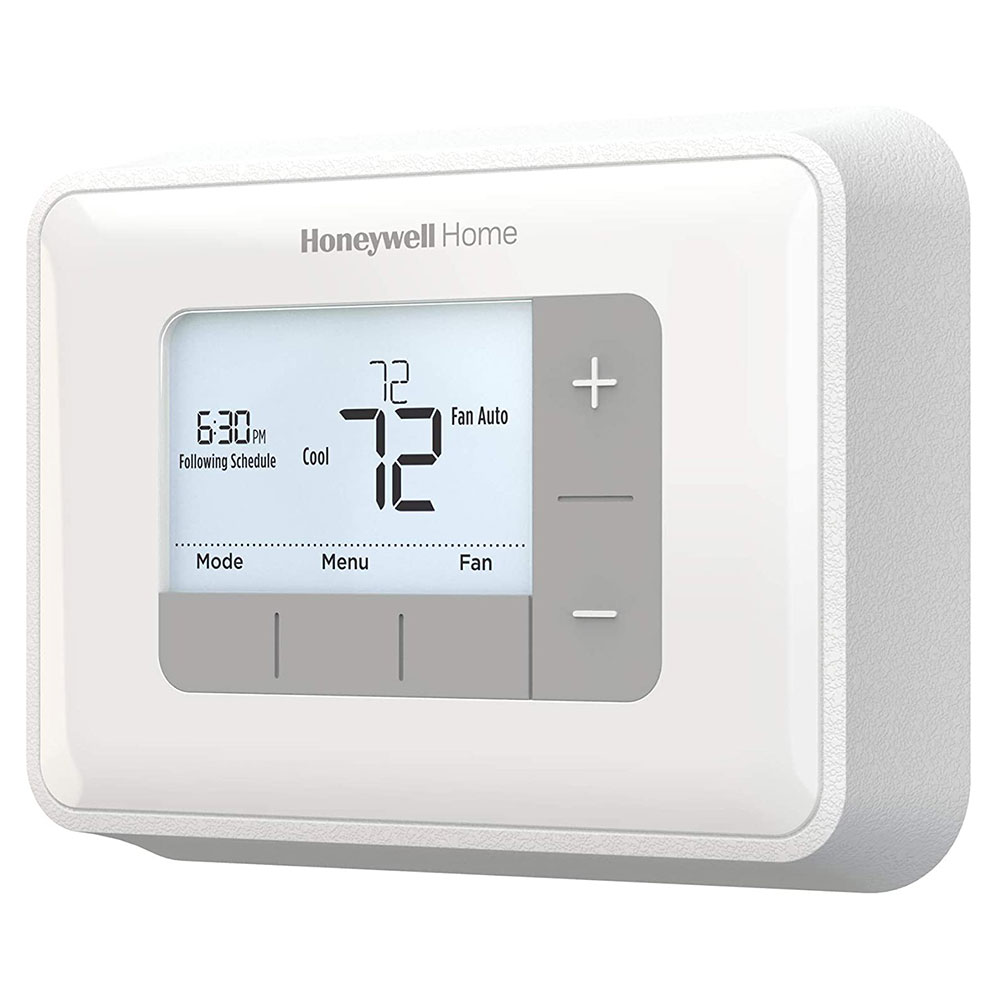

Honeywell Home RTH6360D 5-2 Day Programmable Thermostat
- Flexible programming: 5-2 day or 1-week programming
- Large backlit display shows current room temperature and set point temperature simultaneously
- Smart response learning - learns your heating/cooling cycle times to deliver the right temperature when you want it.
- Filter Change Reminder - keep your heating/cooling system operating at peak performance
- Auto change from heat to cool
- Includes change reminders for filters and low batteries
- Temporary and permanent hold settings
- Real-time clock automatically adjusts for daylight saving time
- Program is retained in memory in the event of a power outage
- 12 or 24-hour time display
- Fahrenheit or Celsius temperature display
- Short cycle protection
- Includes UWP mounting system, mounting hardware and quick install guide
- Requires 2 AA batteries (not included)
- Does NOT work with electric baseboard heat (120-240 V)
Honeywell RTH6360D 5-2 Day Programmable Thermostat
Easily schedule the thermostat so that your system will meet your temperature and comfort needs for the week, or for weekdays and weekends. The use of Smart Response Learning will allow this thermostat to learn your preferred heating/cooling cycle times to deliver precision temperature when it's needed. By adjusting the selected temperature through scheduling while you're away or asleep, you'll be in a position to reduce overall energy consumption. When used as directed, this feature can help save money on your energy bills. The Honeywell 5-2 Day Programmable Thermostat features an easy to read backlit display that will allow for instant accessibility at a glance.
Flexible Programming
With 5-2-day or 1-week programming, you’ll have the option to set your weekday schedule differently from your weekend - for comfort and ]energy conservation. Hold settings will allow you to modify programming as needed. Your programming is retained in the thermostat's memory even if there's a power outage.
Smart Response Technology
Smart Response learning means this thermostat can learn your heating/cooling cycle over time, delivering the right temperature when you want it. With automatic changeover from heat to cool and short cycle protection, this programmable thermostat is easy to install and set up.
Classic Features
New technology aside, this thermostat delivers on those must-have features you want. The large, backlit display shows current and set point temperatures, a real-time clock and your choice between Fahrenheit or Celsius. Reminders for filter changes and low batteries are two less things to worry about.
- Heating Only: Yes
- Cooling Only: Yes
- Compatible with Warm Air Furnace: Yes
- Compatible with Central Air Conditioning: Yes
- Compatible with Hot Water: Yes
- Compatible with Steam or Gravity: Yes
- Use with Floor/Wall Furnace 24V or 750mV: Yes
- Use with Volt Gas Fireplace 24V or 750mV: Yes
- Use with Pellet Stove for mV Thermostats: No
- Use with Electric Baseboard 120V-240V: No
- Single-Stage Heating: Yes
- Single-Stage Cooling: Yes
- Multi-Stage Heating: Yes
- Multi-Stage Cooling: Yes
- Compatible with Heat Pump (No Aux.): Yes
- Compatible with Heat Pump (No EM): Yes
- Compatible with Heat Pump (With Aux.): Yes
- Compatible with Heat Pump (With EM): Yes
There are two types of resets you can perform on your Honeywell Home 5-2 Day Programmable Thermostat - RTH6360D:
- Factory Reset: This erases all settings, including the program, time, date, and any other customized options.
- Schedule Reset: This only resets the temperature program for weekdays and weekends, leaving other settings untouched.
Here's how to perform each reset:
Factory Reset:
- Press and hold the Menu button on your thermostat.
- Press the right arrow button until you see "Reset" on the screen.
- Select "Reset" by pressing it.
- Using the right arrow button again, navigate to "Factory Reset".
- Select "Factory Reset" to confirm the reset.
Schedule Reset:
- Press and hold the Menu button on your thermostat.
- Press the up arrow button until you see "Reset" on the screen.
- Select "Reset" by pressing it.
- Using the up arrow button again, navigate to "Schedule".
- Select "Schedule" to confirm resetting the program.
Important Note: After performing a factory reset, you'll need to reconfigure all settings on your thermostat, including the time, date, and temperature program.
You can program four time periods each day, with different settings for weekdays and weekends. We recommend the pre-set settings, since they can reduce your heating/cooling expenses.
- Wake – Set to the time you wake up and the temperature you want during the morning, until you leave for the day.
- Away – Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).
- Home – Set to the time you return home and the temperature you want during the evening, until bedtime.
- Sleep – Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level)
- Warranty: 1 Year Limited Warranty
- Model Number: RTH630D
- Product Dimensions (WxDxH): 5.36 x 1.08 x 3.86 in
