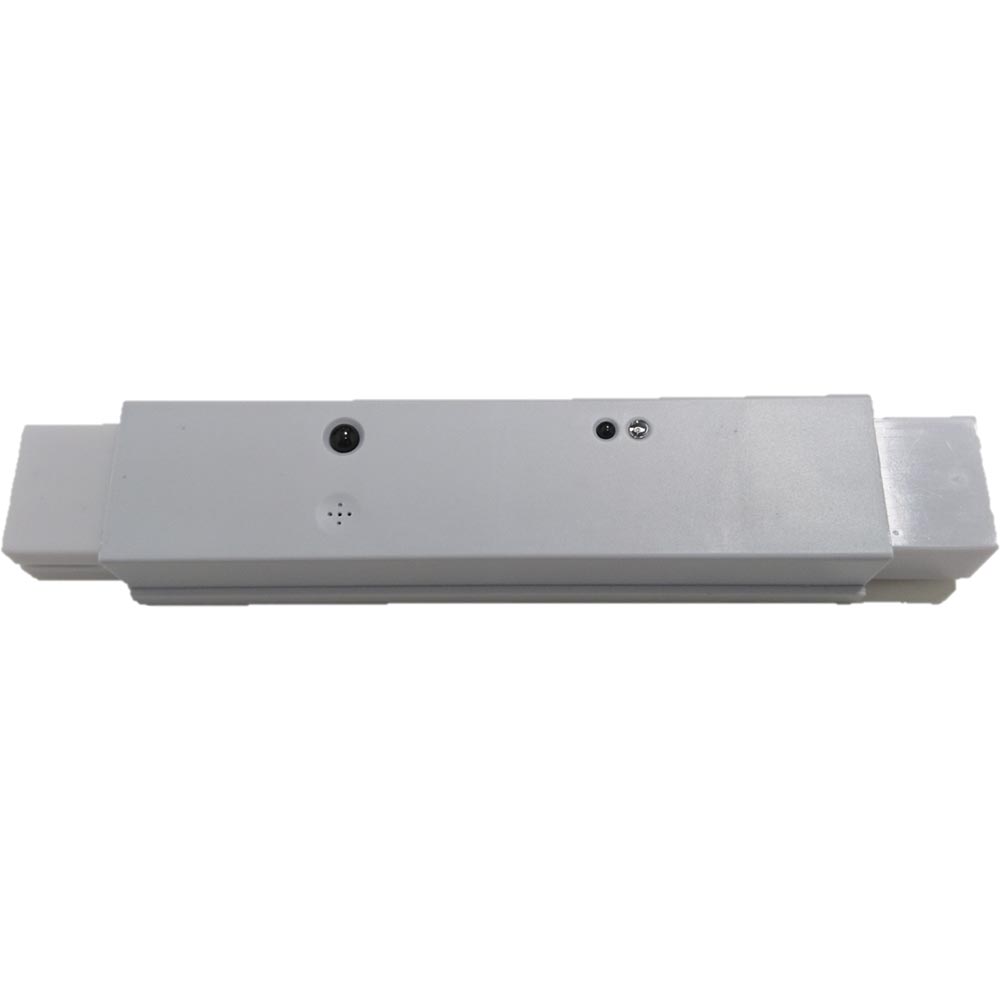

Light Efficient Design High/Low Motion and Daylight Sensor - RP-LBI-OC3-A_LR
Light Efficient Design RP-LBI-OC3-A_LR is a 4.7 in. limited range high/low motion and daylight sensor that's made for the LBI series of light bars. It features plug and play operation, and works even behind a plastic or glass lens. The sensor can be attached to one end of a light bar, in line with other light bars, or to a linking cable. Please Note: Motion sensor does not come included with the light bars.
- Mounting height: up to 13 ft.
- Detection radius: up to 14 ft. diameter
- Operating temperature: -4° F to 158° F (-20° C to 70° C)
- Full control: (high-low-off) on up to 15 light bars
- Limited control: (high-low) on up to 40 light bars
- Can manage the 0-10V dimming signal in either direction
- Operates on 12V DC from the light bar
- Can differentiate between natural daylight & LED light
- Consumes less than 0.1 watts while on standby
- Memory function in case of power failure
- 4.7 in. sensor can set the light bar to a standard length once attached
- Kit includes: Motion sensor, surface mount magnetic clip, (2) dimmable seamless connectors, (2) screws, and a 12 in. dimmable linking cable
- Remote control is needed if settings need to be programmed outside of factory default settings
- Default settings - 50% sensitivity, disabled daylight sensor, 5 minute hold time, 30% twilight level
- Ideal for storage closets, work stations, or single restrooms
- Sold individually
