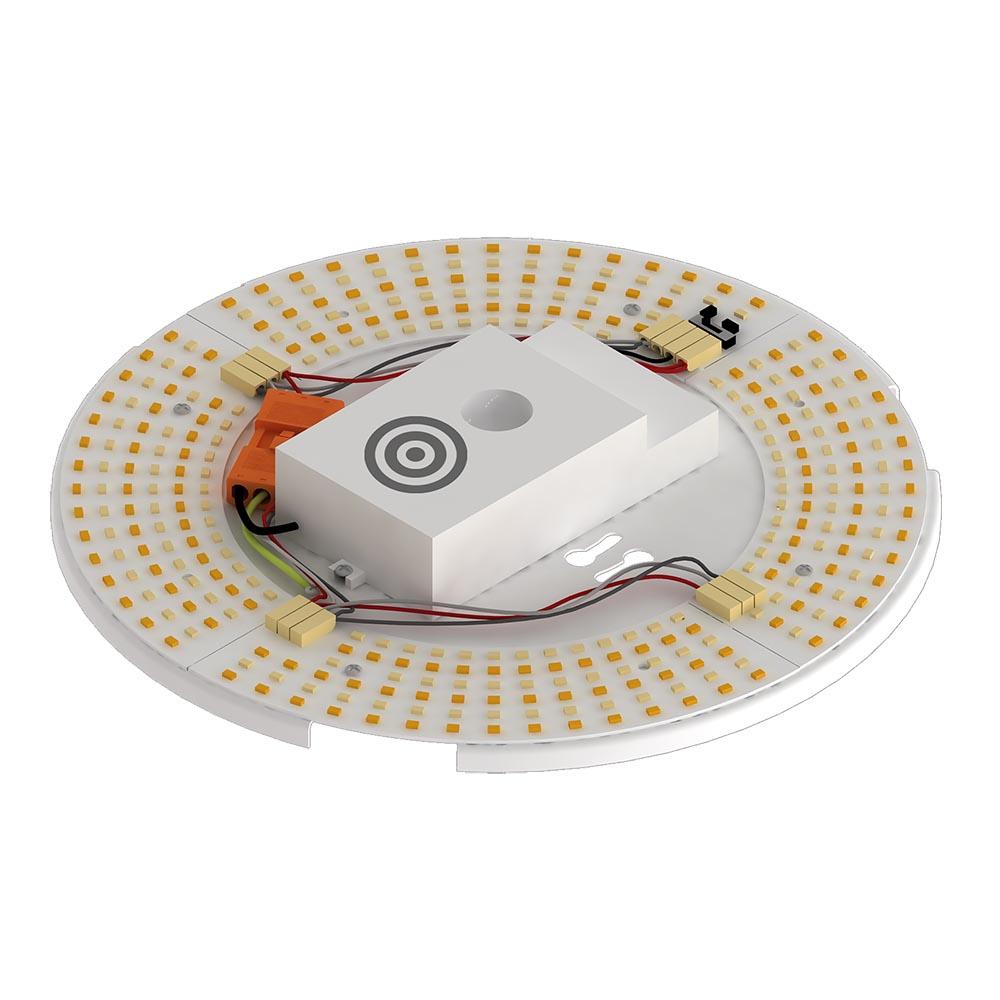

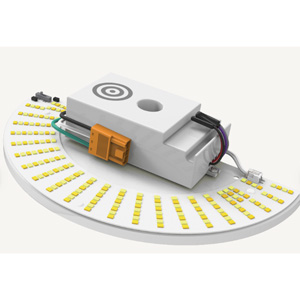

Light Efficient Design 9 in. Circular Drum Retrofit With Occupancy Sensor Included - RPT-P-LEDCR-G2-9IN-14L-840-FWFC-OCC

Light Efficient Design is a 10W LED Retrofit Kit with sensor, made for surface mount drum fixtures. It has an 8.7 in. diameter and a default color temperature of 4000K with a luminosity of 1370 Lm. The retrofit kit features Flexwatt & Flexcolor technology. The wattage and color temperature can be adjusted from the factory default settings.

• Includes built-in occupancy (motion and daylight) sensor
• Sensor hidden behind fixture lens (works with glass or plastic lenses)
• Can be used in dry or damp environments
• Built-in rare-earth magnets for easier installation
• Driver has cut-out in the center for threaded rods
• Multiple holes for self-tapping screws
• LED boards are expandable to fit larger housings
• Cut-outs in chassis for different wiring options
• 5VA driver housing
• Driver works at 90% efficiency at each wattage setting
• UL1598C listed, so once modified existing fixtures can still be UL listed

Specifications

• Dimensions- 8.7 in. Diameter x 2 in. Height
• Default Output Power- 10 Watts (6W, 10W, 16W, or 22W settings)
• Default Color Temperature- 4000K (3000K, 3500K, or 4000K settings)
• Default Lumens- 1370 (780-3124 flex)
• Default Lumens Per Watt- 137
• Beam Angle- 120
• CRI- 85
• Input Voltage- 120-277V
• Lifespan- 100,000 hrs
• Dimmable- 0-10V
• Operating Temperature- -20 C to 60 C (-4 F to 140 F)
• Approvals- ETL Listed, UL1598C Listed, RoHS
• Warranty- 10 Year Manufacturer's Warranty
